產品詳細：

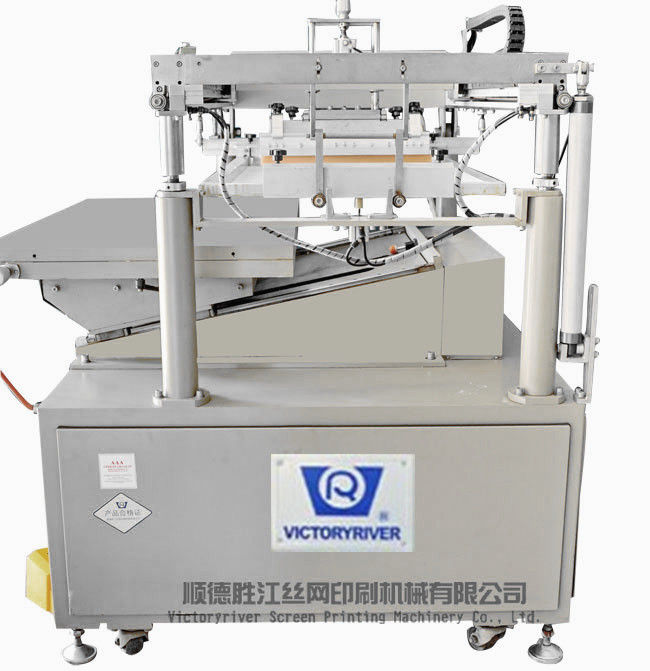

● 該機型采用網版不動，減少流動空氣引起的干網和灰塵；工作臺斜提上下運動方式，與其他機型相比，本機具有上下料方便、操作安全等優點；
● 各部件機械結構科學合理，運行動作協調，操作更具靈活性
● 電器元件、氣動元件、機械外購件等重要元件均選用知名品牌，確保機器運行可靠
● 本機采用PLC+人機界面集中控制，定位準確，操作簡單快捷，方便，維修率少
● 控制程度設計科學，設有優良保護功能，最大程度防止因誤操作而造成產品和設備損壞及對操作人員的傷害
● Adopt screen fixed to reduce the screen dry and dust caused by run air, working table will work tilting up and down, compared with other model machines, this machine has the advantage of easy to load and unload the materials and safer operation.
● This machine sets up by a series of scientific components, working cooperativeness and flexibility.
● Both of the electrical and pneumatic components are selected well-known brands, to make sure the machine working efficiently.
● The machine adopts PLC+HMI centralized control, position accuracy and little maintenance.
● By the scientific design and excellent protection function, maximum to prevent the product and machine damage and operator's injury cause by the fail operation.
設備參數Parameter:
|
型號Model
|
SJXS-9060
|
SJXS-6045
|
|
最大印刷尺寸Max printing size
|
900*600mm
|
600*450mm
|
|
最大網框尺寸Max screen frame size
|
1300*1000mm
|
1000*800mm
|
|
工作臺尺寸Working table size
|
1100*700mm
|
800*550mm
|
|
印刷厚度Printing stock thickness
|
0-120mm
|
0-120mm
|
|
離網高度Snap-off height
|
0-25mm
|
0-25mm
|
|
最大印刷速度 Max printing speed
|
700 times/h
|
900 times/h
|
|
氣源Air source
|
0.5-0.7Mpa
|
0.5-0.7Mpa
|
|
電壓Voltage
|
380v/50HZ 2.65kw or customized
|
380v/50HZ 2kw or customized
|
|
工作臺微調范圍 Working table adjustment range
|
±10mm
|
±10mm
|
|
機器尺寸Machine size
|
1680*1400*1600mm
|
1500*1200*1550mm
|
